D.520 manual and flight test

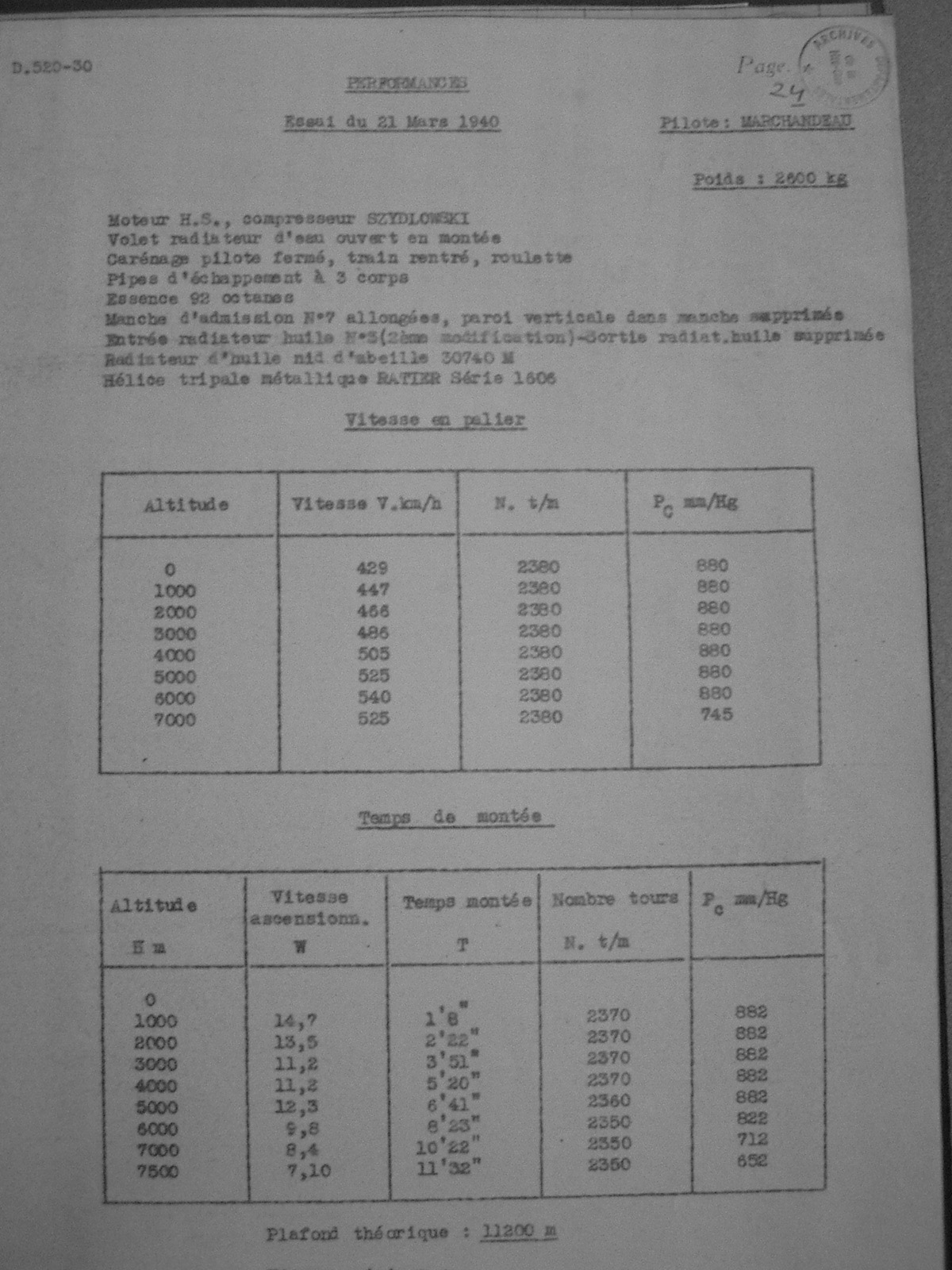

Earliest production D.520 being problematic in regards to cooling and performance, one should note that: the test flight of March 21st was performed on s/n 30, with the following features:

Definitive production compressor intakes
Definitive propulsive exhaust pipes
Some improvements done on water and oil cooling systems, almost definitive

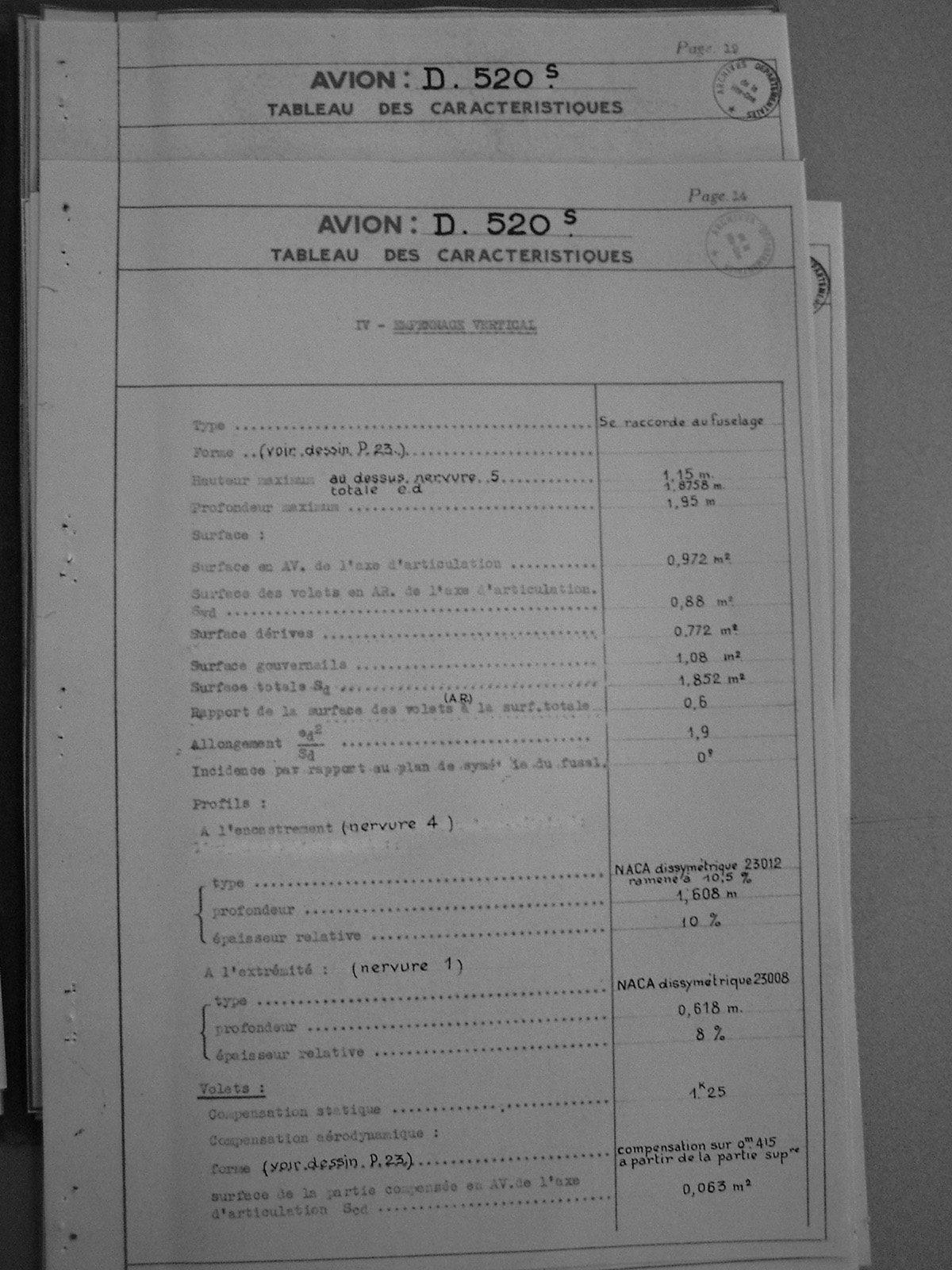

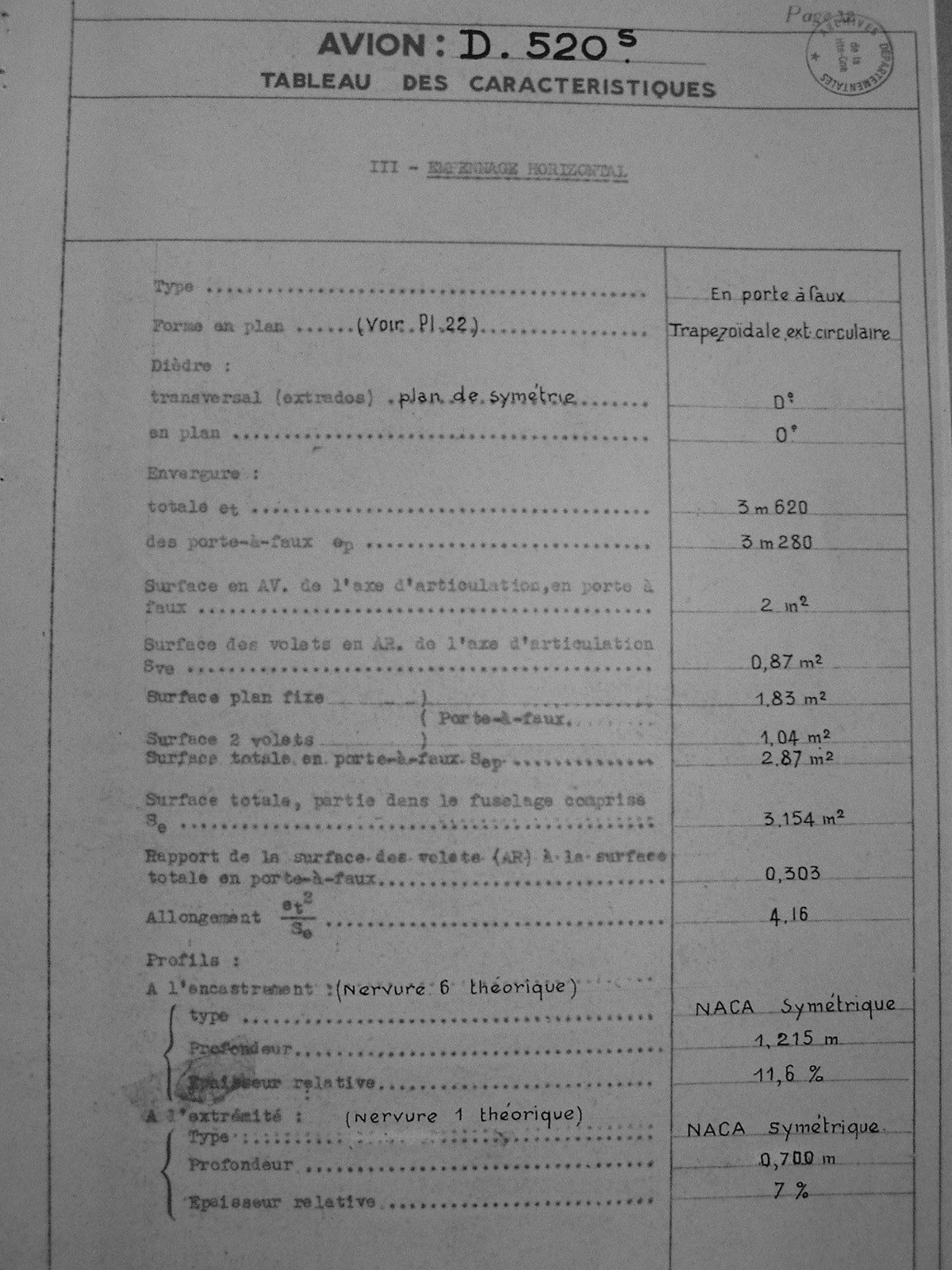

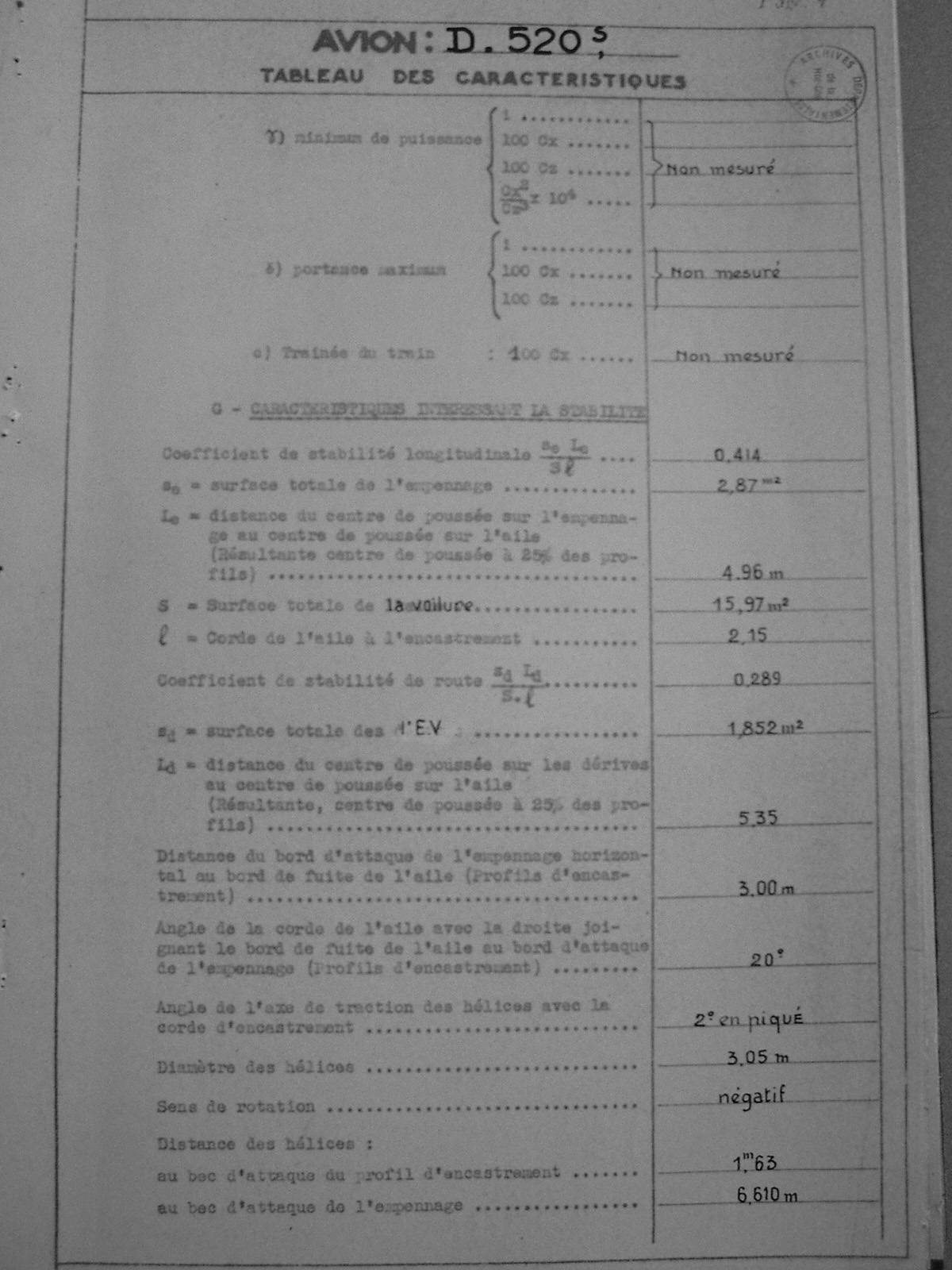

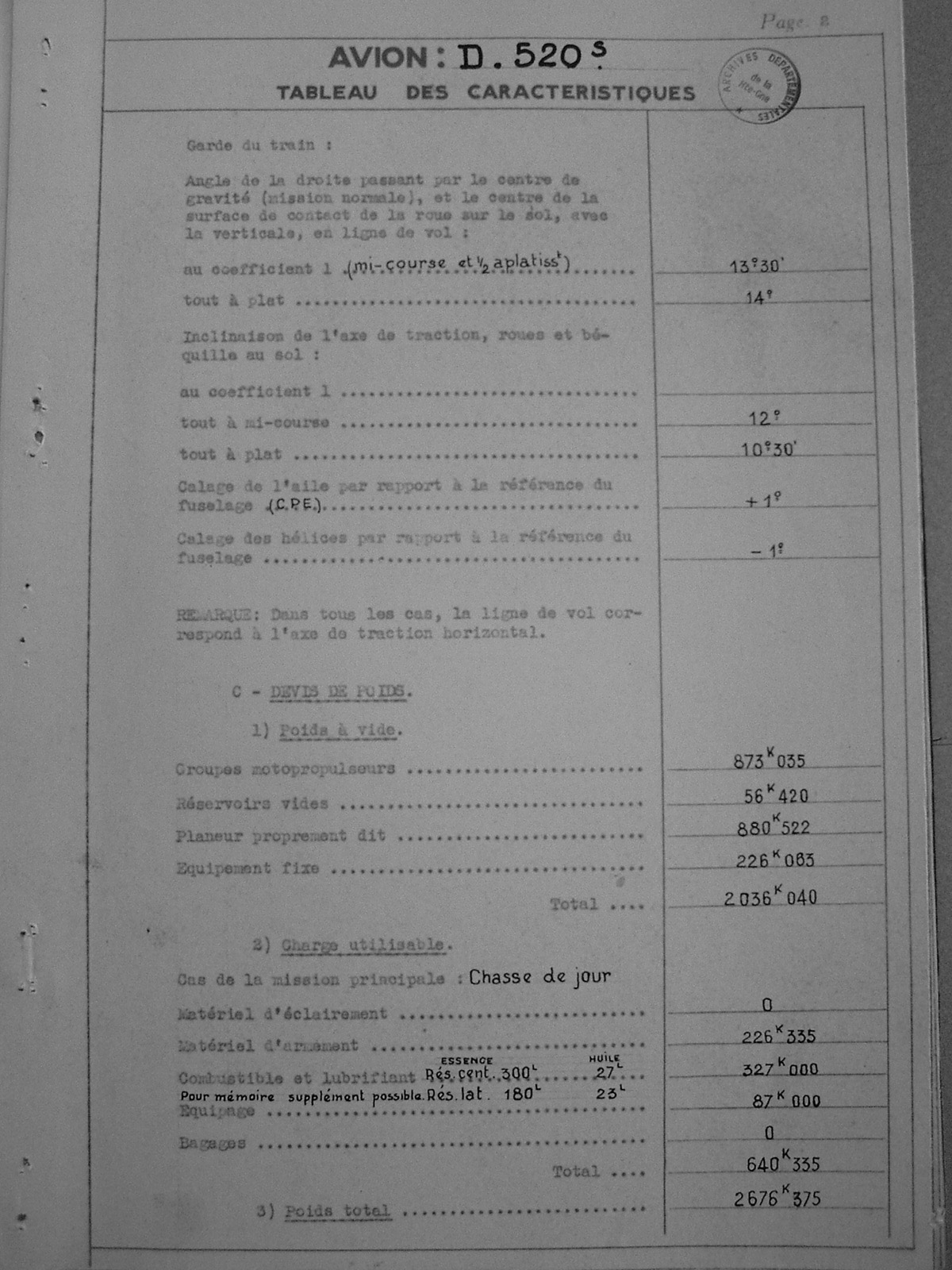

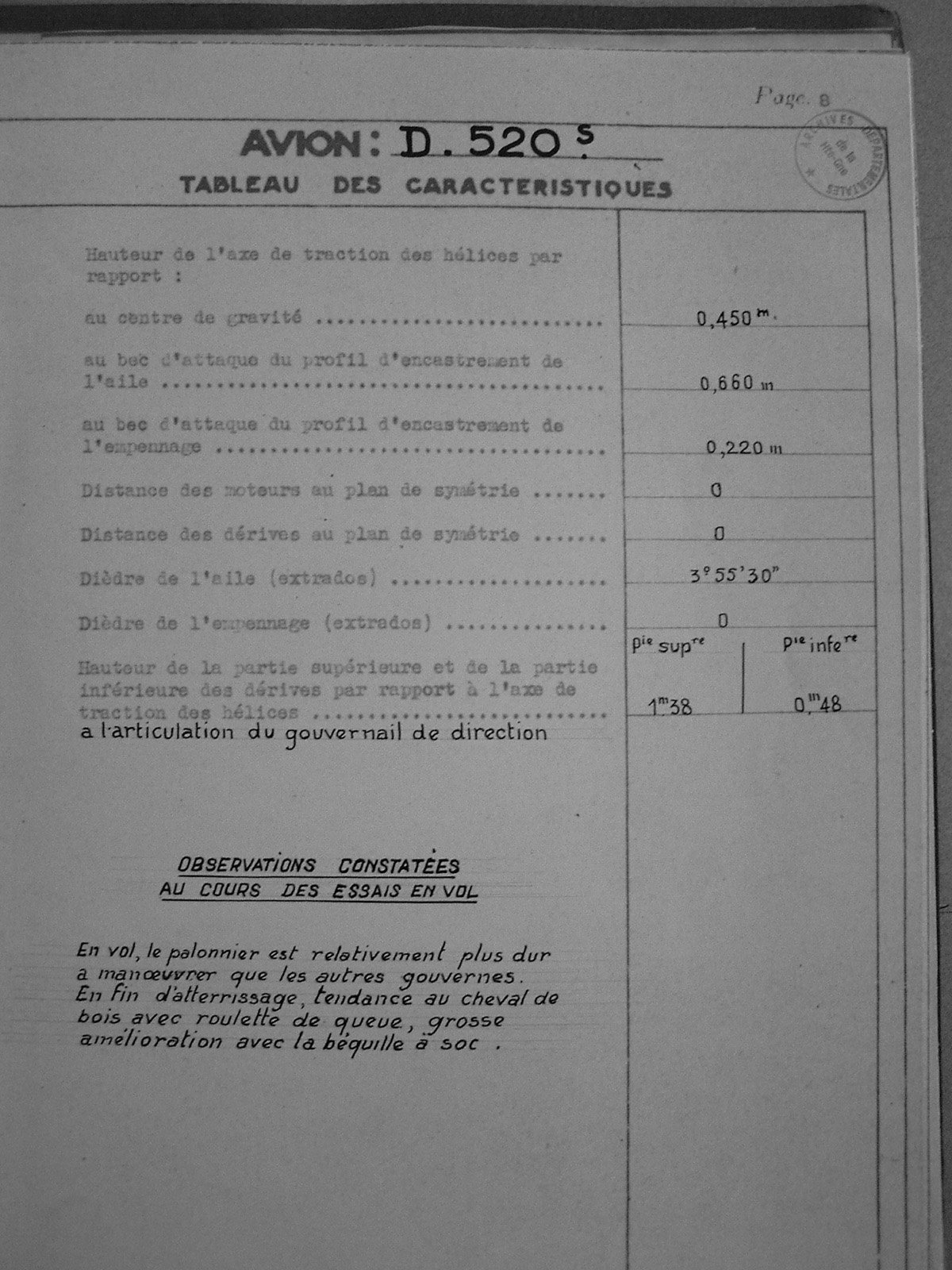

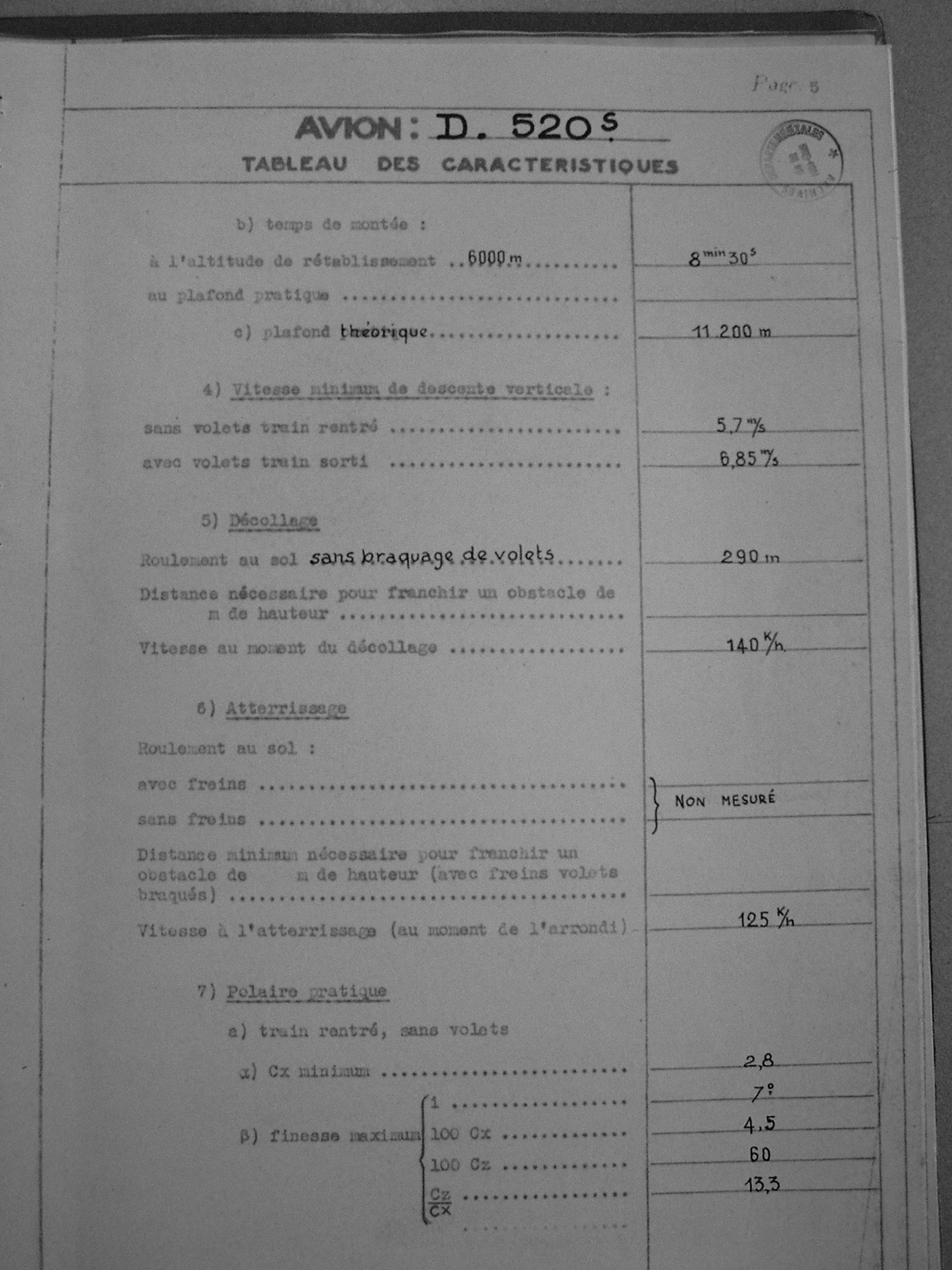

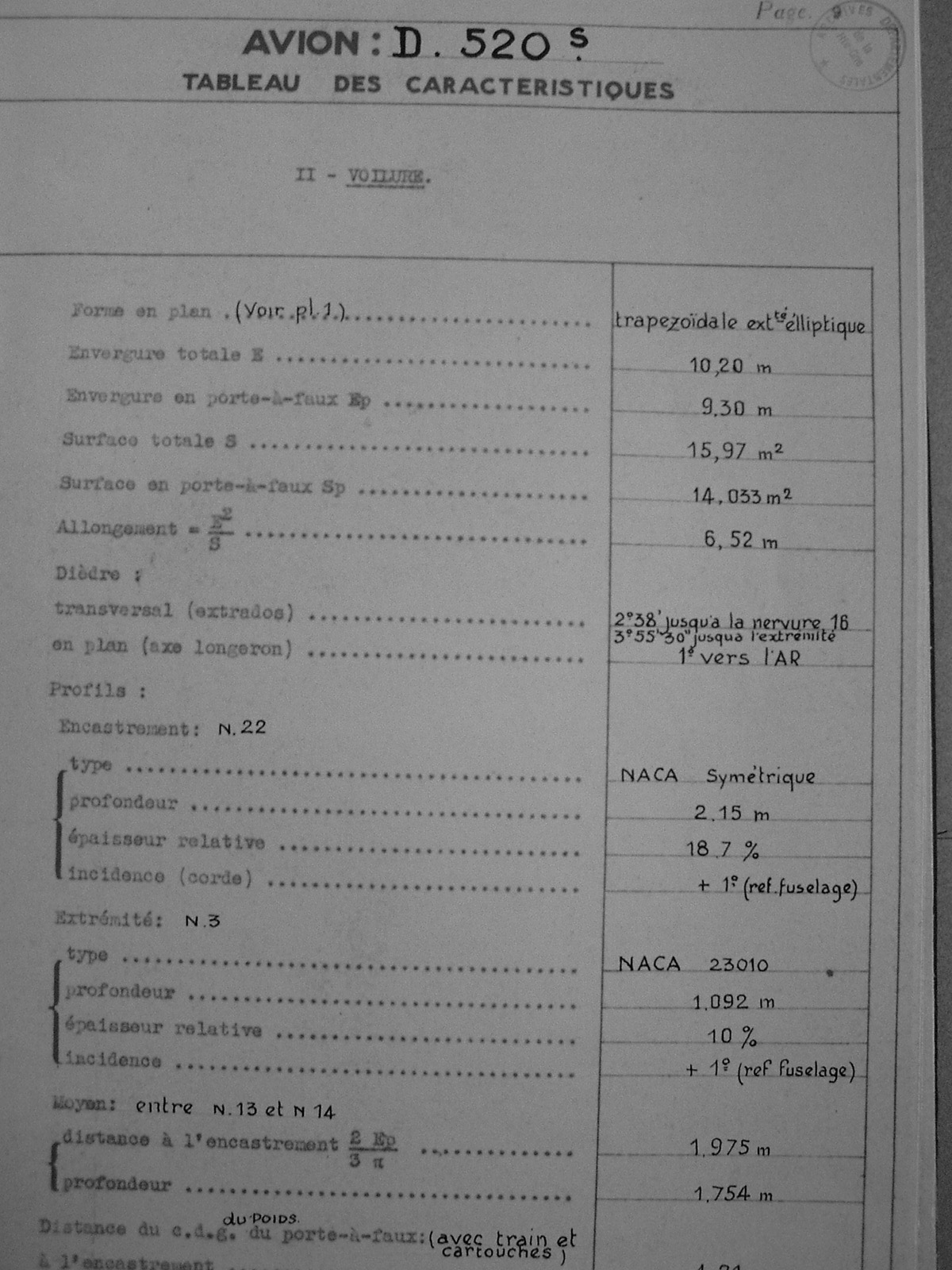

Manual01.jpg 416.85 KB	Manual02.jpg 397.70 KB
Manual03.jpg 401.90 KB	Manual04.jpg 396.04 KB
Manual05.jpg 404.91 KB	Manual06.jpg 392.80 KB
Manual07.jpg 414.21 KB	Manual08.jpg 405.98 KB
Manual09.jpg 420.40 KB	Manual10.jpg 404.83 KB
Manual11.jpg 417.58 KB	Manual12.jpg 399.59 KB
Manual13.jpg 397.04 KB	Manual14.jpg 381.48 KB
Manual15.jpg 379.69 KB	Manual16.jpg 375.66 KB
Manual17.jpg 361.66 KB
