Internal model and details

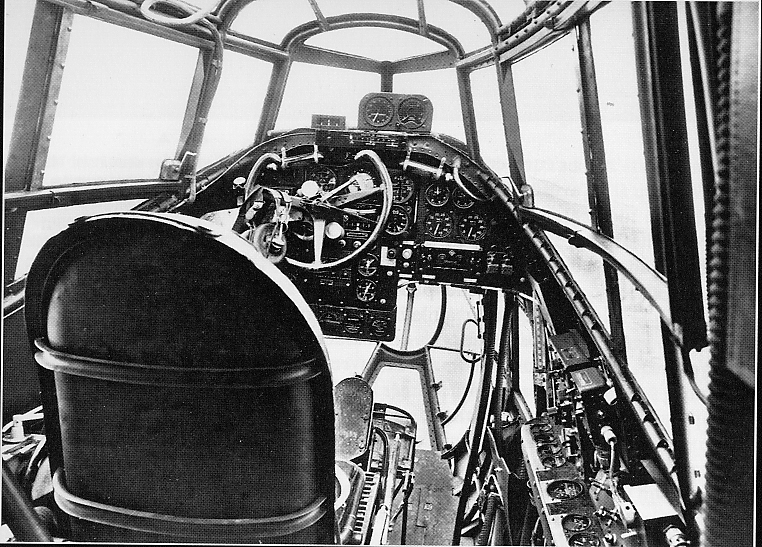

Pilot's position (postwar example)

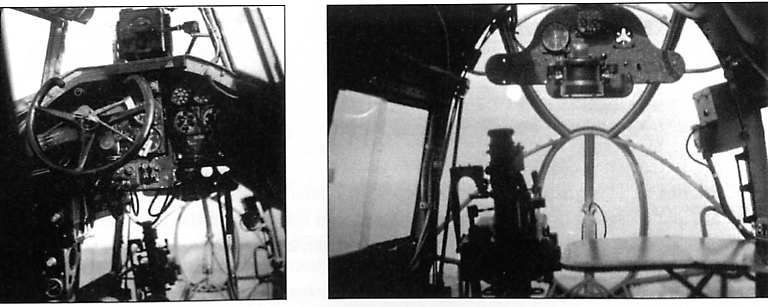

Pilot's and bombardier's position (wartime example)

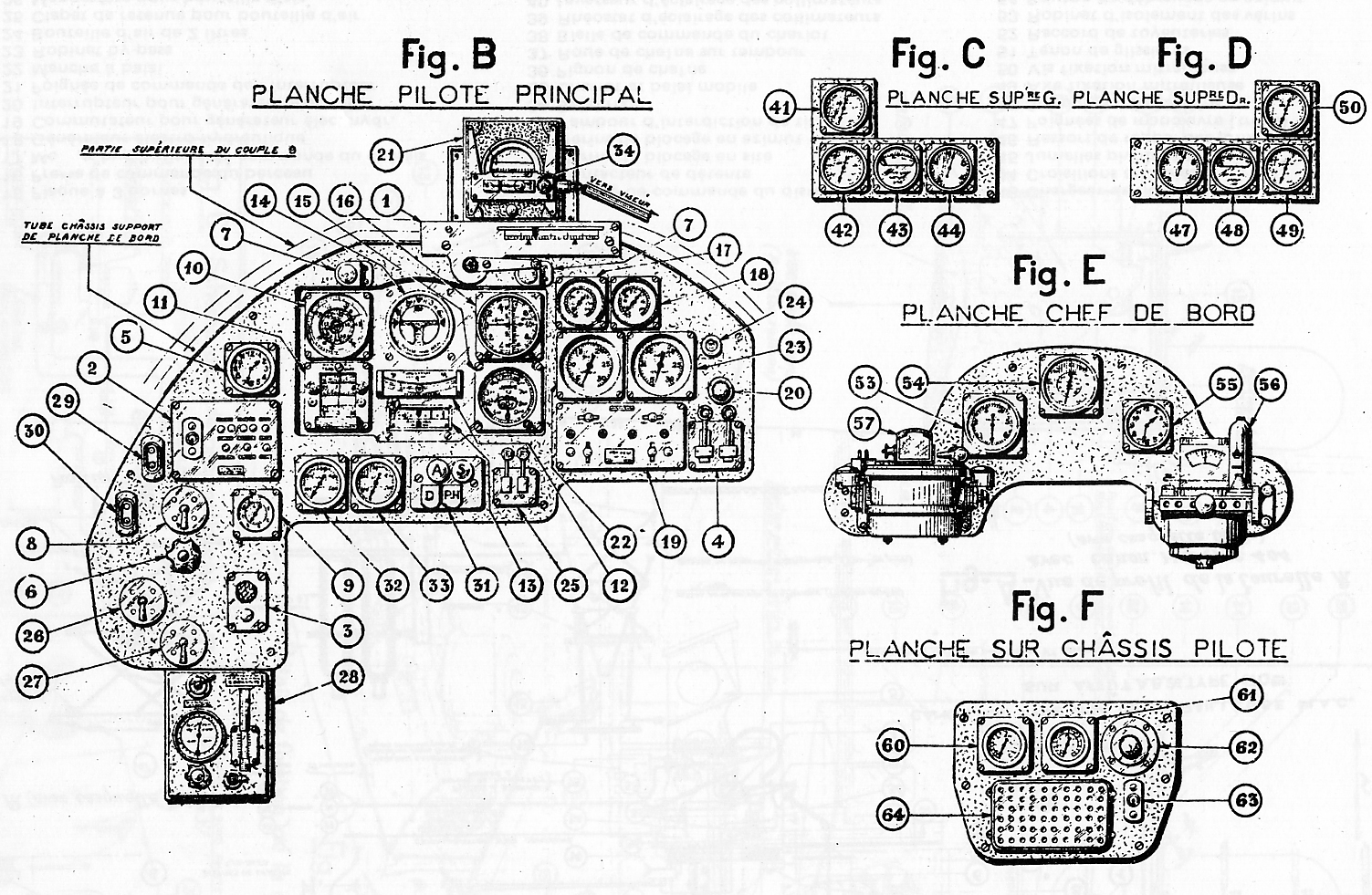

Instrument panels



Fig. B: Pilot's main panel
  1. Flaps position indicator
  2. "Labinal 3084" landing gear control panel
  3. Speedometer un-icing control panel
  4. "Lévy" fire indicator and extinguisher control switches
  5. Clock
  6. Vacuum pump regulator valve (?)
  7. Stall warning lights
  8. "Atmos 14.101" vacuum pump two-way switch (?)
  9. Vacuum pump pressure indicator
  10. Speedometer
  11. Compass
  12. Bank indicator ("Pente latérale")
  13. Turn indicator ("Indicateur de virages")
  14. "Sperry" artificial horizon
  15. "Jaeger 210" altimeter (two needles, one for hundreds, one for thousands)
  16. Cimb and pitch indicator
  17. Port engine manifold pressure
  18. Starbord engine manifold pressure
  19. "Ratier" propellors pitch control panel
  20. "Labinal 1646 B" stall warning lights adjusting knob
  21. "L'apareillage aéronautique" (built under Sperry license) directional gyro
  22. Port "Jaeger 33-10" RPM indicator
  23. Starboard "Jaeger 33-10" RPM indicator
  24. RPM indicators two-way switch (?)
  25. "Levy" engine cowling position selector
  26. Directional gyro switch (?)
  27. Artificial horizon switch (?)
  28. "Munerelle" oxygen supply
  29. "Labinal 1420" power supply plug for target heading indicator (see item 34)
  30. "Labinal 1420" power supply plug for compass
  31. "Messier" machine gun selector panel
  32. Port engine fuel pressure
  33. Starboard engine fuel pressure
  34. "Bronzavia type11" target heading indicator (plugged in to bombsight)
Fig. C: pilot's port upper panel
  1. Port engine input oil temperature
  2. Port engine output oil temperature
  3. Port engine temperature
  4. Port engine oil pressure
Fig. D: pilot's starboard upper panel
  1. Starboard engine oil pressure
  2. Starboard engine temperature
  3. Starboard engine output oil temperature
  4. Starboard engine input oil temperature
Fig. E: bombardier instrument's panel
  1. Speedometer
  2. "Jaeger 210" altimeter (two needles, one for hundreds, one for thousands)
  3. Clock
  4. Radio-goniometric indicator
  5. "Vion H.A.82" compass
Fig. F: pilot's secondary panel
  1. Landing gear pressure indicator
  2. Autopilot compressor pressure indicator
  3. Cockpit lights "Labinal" adjusting knob
  4. Cockpit lights "Labinal" switch
  5. Warm air output

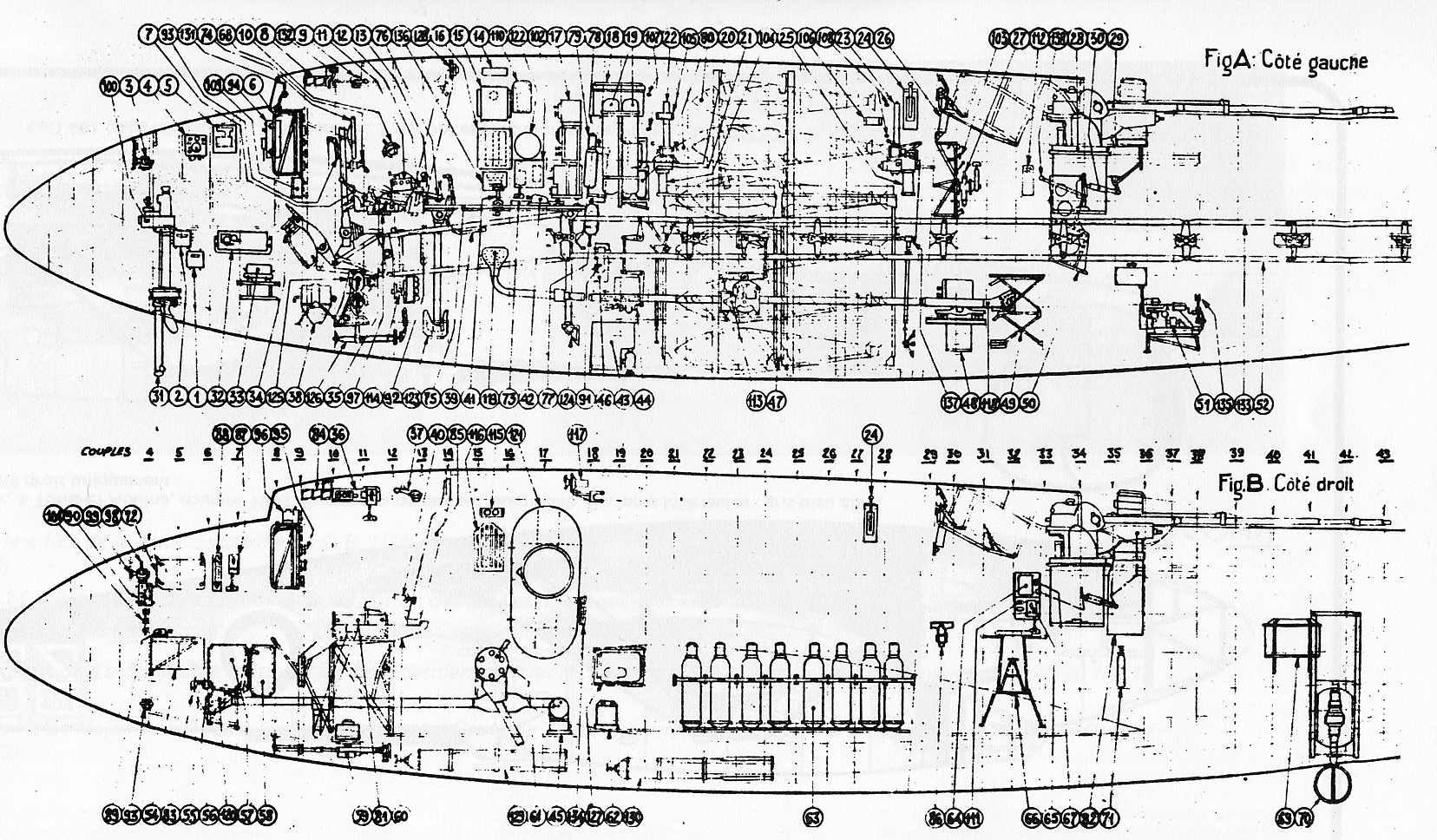

General cutaway drawings

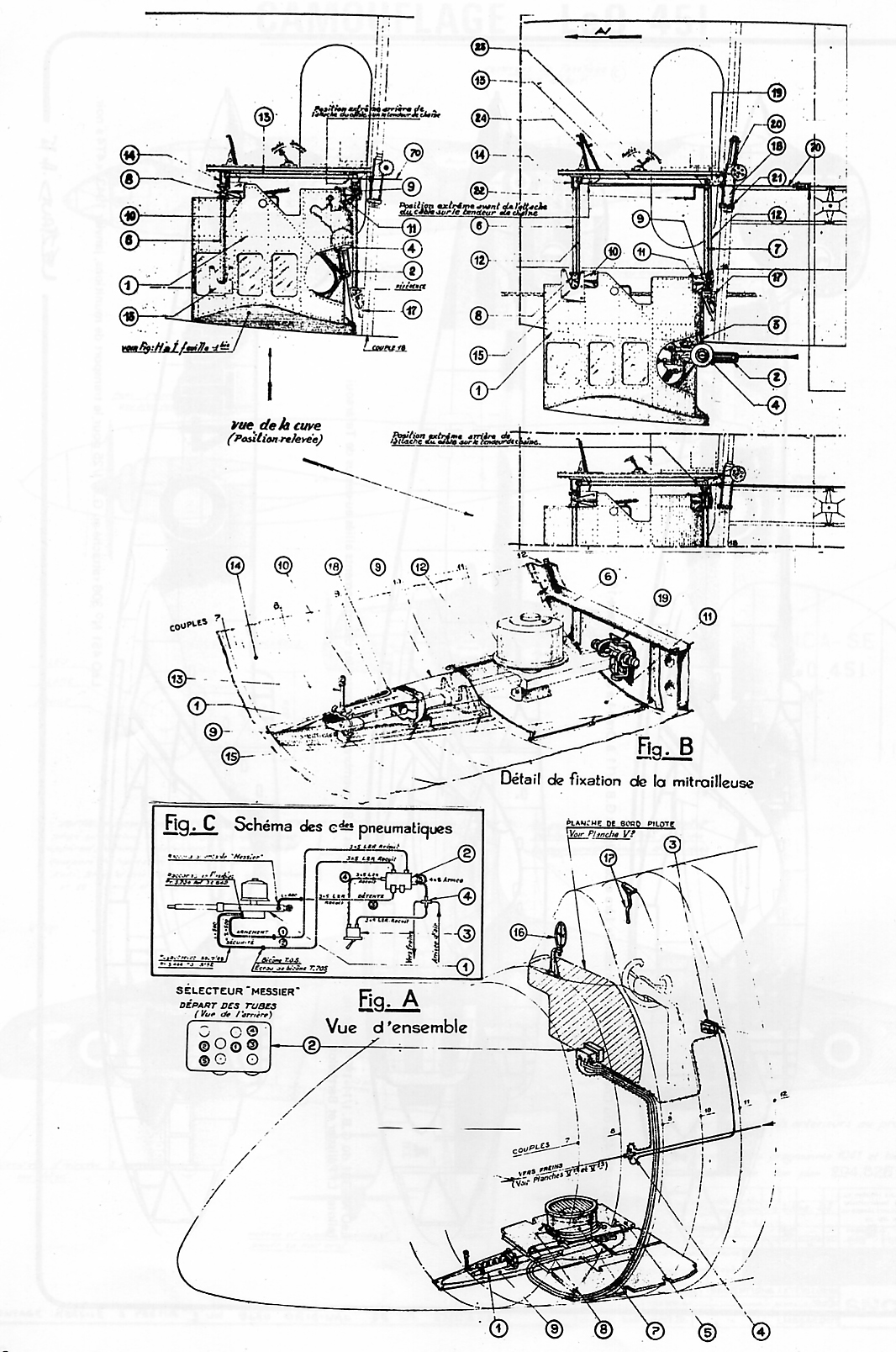

Pilot's weapons, gunsight, and retractable belly turret

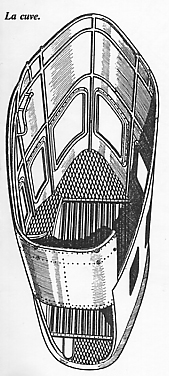

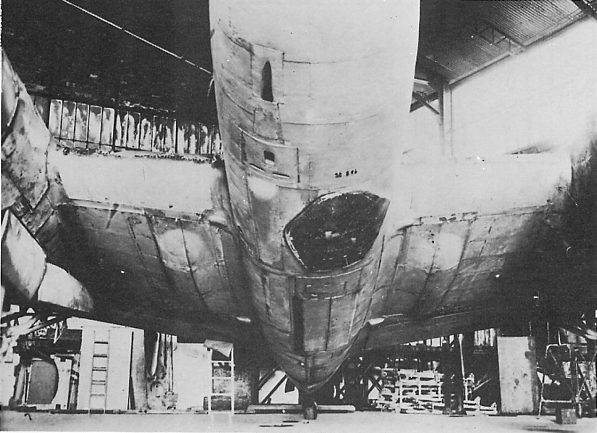

Belly turret


Belly turret, front MG port and bomb bays

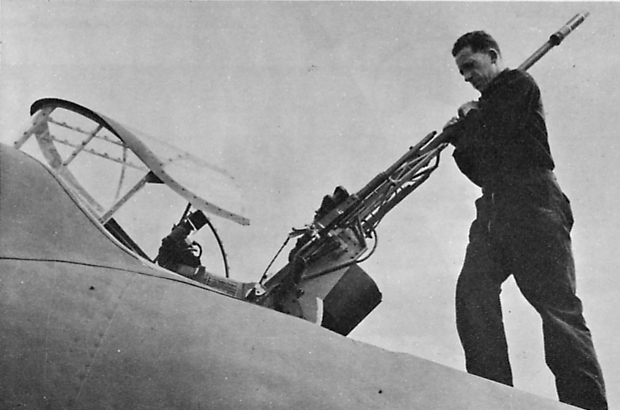

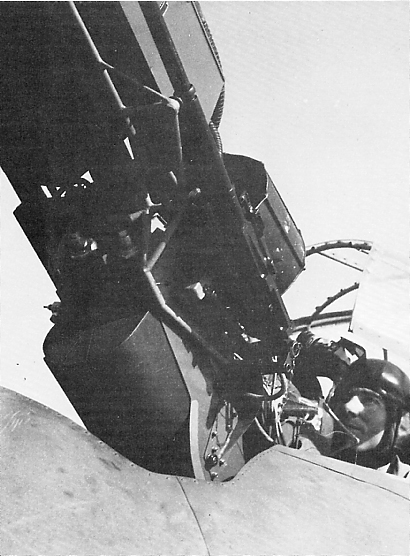

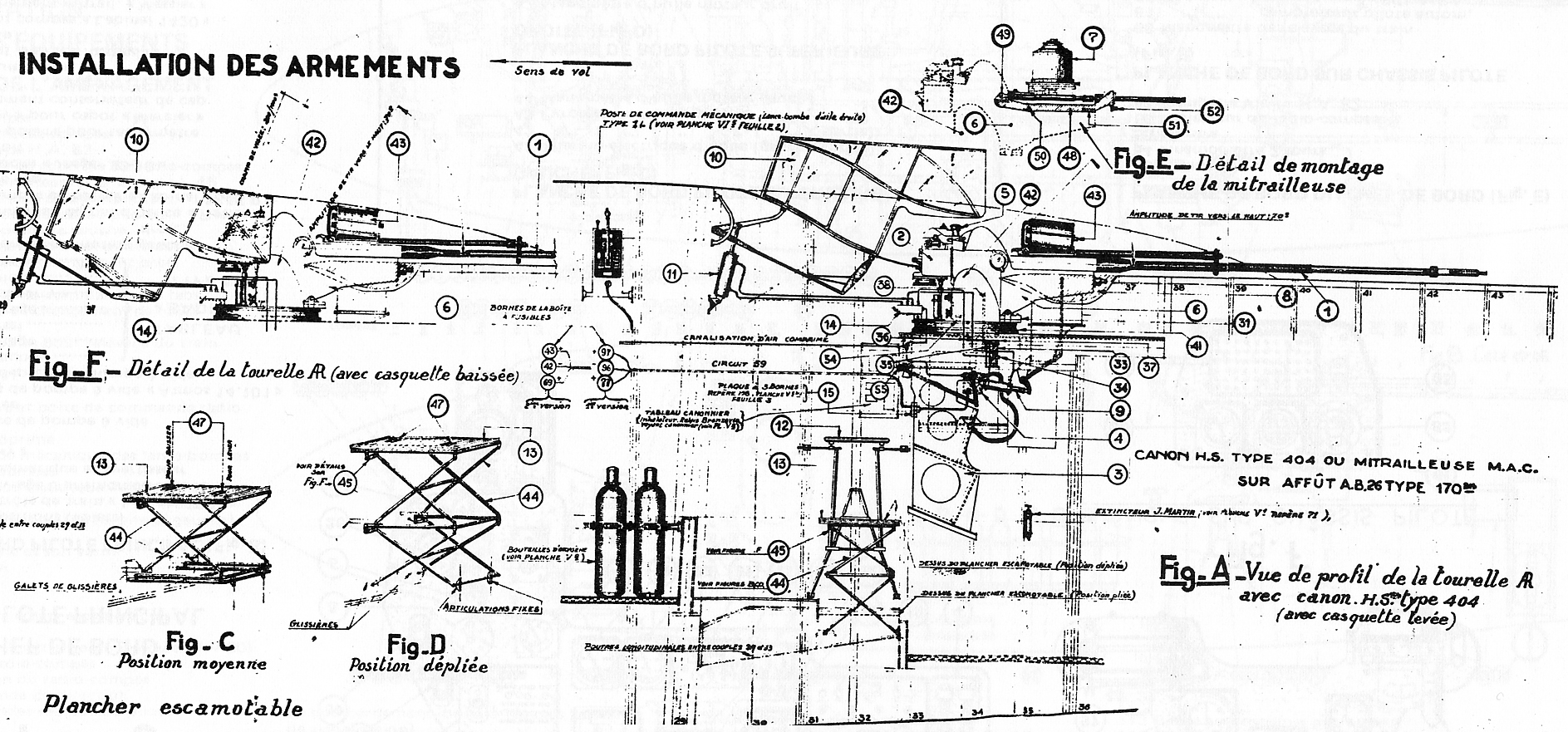

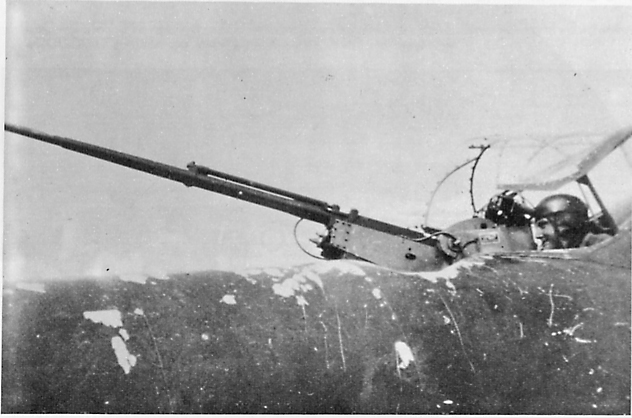

Rear cannon turret


Rear cannon turret (missing ammo clip)


Rear cannon turret (missing ammo clip, post-BoF additional MGs)


Rear cannon turret (post-BoF additional MGs)

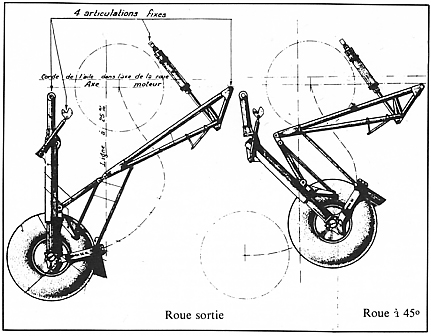

Main landing gear

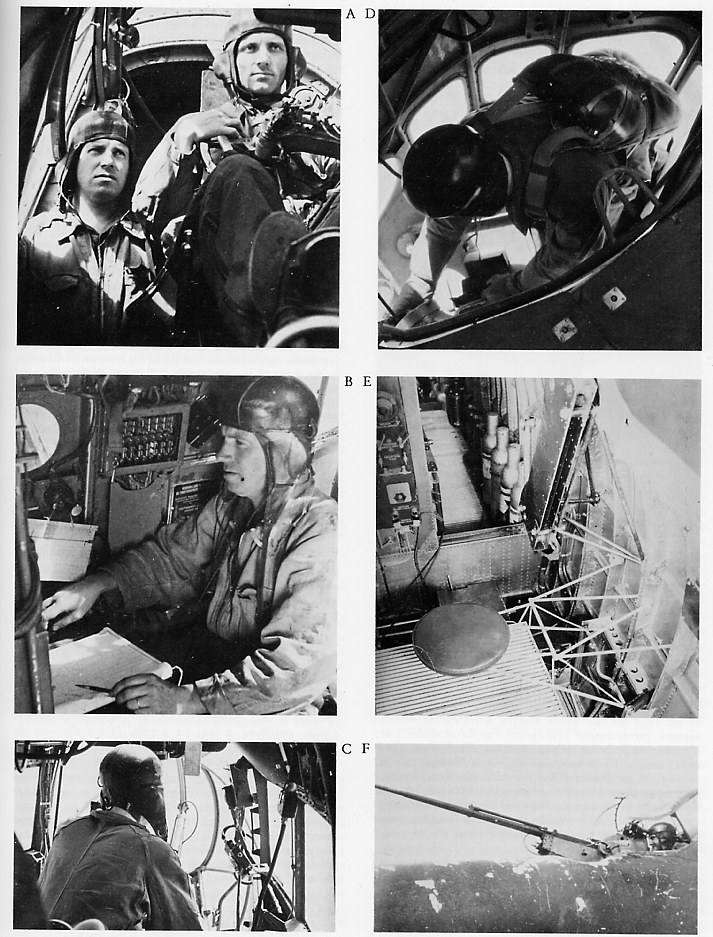

Misc. internal views
