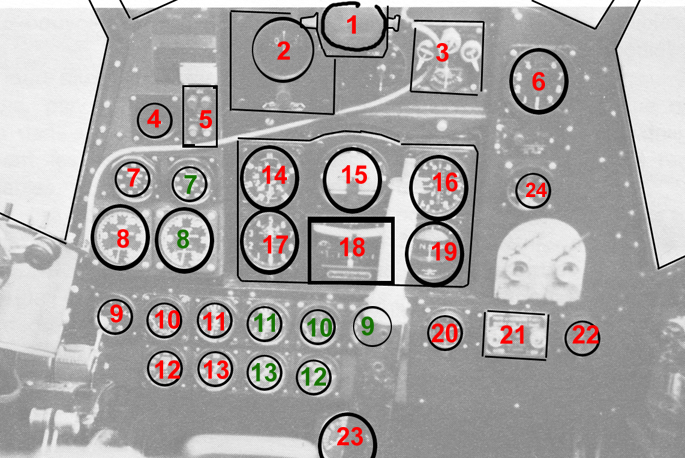

Breguet 693 instruments panel.


Panels differed slightly from aircraft to aircraft. Here's one fully-equipped example. It has similarities with other contemporary bombers and reconnaissance aircraft, as you can see by comparing with the LeO.451's panel.



1

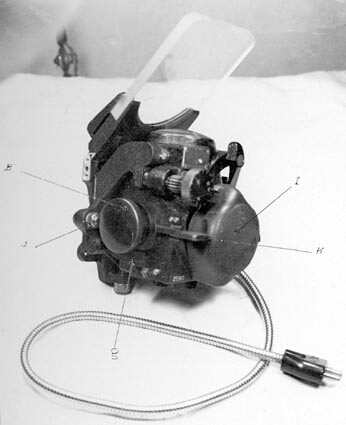

 Baille-Lemaire 40 reflector gunsight
2
 L'Appareillage aéronautique directional gyro (license-built copy of Sperry instrument)
3
 Gyro control switches
4
 Clock (placeholder... missing on most pictures)
5
 Landing gear position indicator
6
 AERA M100 altimeter (similar to the one currently modelled in the H-75)
7
 Bourdon manifold pressure indicator (currently modelled one is fine, except unit is wrong - should be Pièzes (pz) not mm/Hg)
8
 Jaeger RPM indicator (currently modelled one is fine - scale is not excaly identical, no biggie)
9
 Don't know :(
10
 GM Oil intake and output temperature
11
 Oil pressure
12
 Fuel gauge
13
 Fuel pressure
14

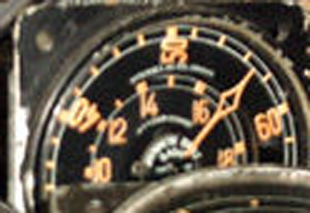

 Twin-scale airspeed indicator
15
 L'Appareillage aéronautique artificial horizon (license-built copy of Sperry instrument)
16

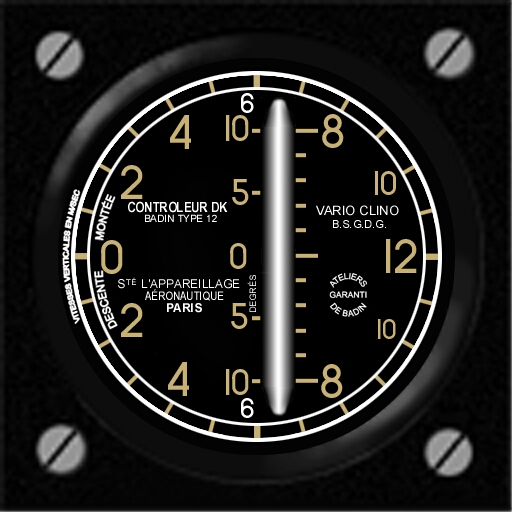

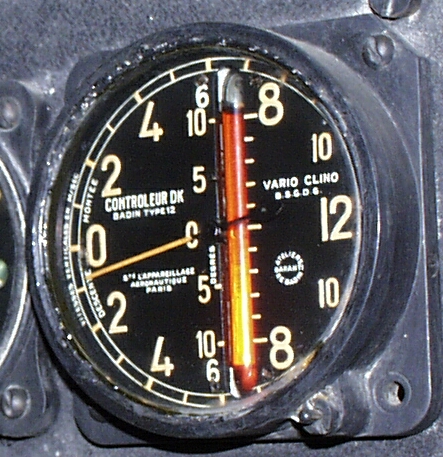

 Vertical speed and pitch angle
17
 Jaeger altimeter (this one has two needles, one for thousands and one for hundreds)
18
 Turn and bank
Readable:
         PENTE LATERALE
(under ball)
      INDICATEUR DE VIRAGES
(under turn indicator)
19
 AERA compass
20
 Impar pneumatic ammo counter (I guess main needle for hundreds, small needle for thousands)  - port MG
21
 Alkan flare laucher panel
Readable:
     POSTE DE COMMANDE 2 B.E.C
MODELE 1935           A & L Constr.
GAUCHE                    DROITE
            MARCHE
         TIREZ A FOND
           ET LACHEZ
22
 Same as 20 - starboard MG
23
 Olaer landing gear brake pressure indicator
3 needles. Readable:
            FREINS
            OLAER
24
 Don't know :(





Some aircraft also had an ammo counter for the cannon, and for the ventral MG.
